產品介紹：

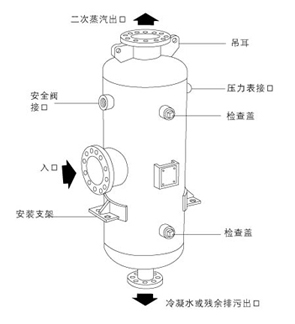

閃蒸罐/FLASH STEAM POT
優點：
高壓高溫冷凝水輸送過程中，壓力產生變化使高溫冷凝水變成二次蒸汽，產生的二次蒸汽通過閃蒸罐進行回收，為低壓用氣設備提供蒸汽，能夠有效地減少能源浪費，閃蒸罐采用旋技術，進入閃蒸罐的二次蒸汽和冷凝水有效分離。Merits
During the transfer of high-pressure and high-temperature condensate,the pressure changes cause high-temperature condensate to change into secondary steam,which is recycled by the flash steam pot so as to supply steam for low-pressure steam using equipment for the purpose of effective reduction of energy waste.The flash steam pot,using rotating technology,effectively separate secondary steam and condensate within the flash steam pot.

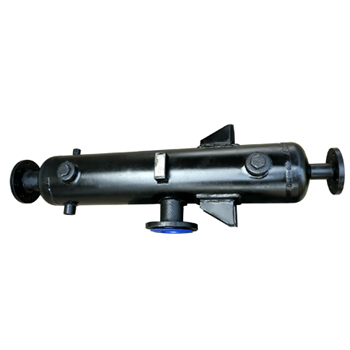

閃蒸罐/FLASH STEAM POT
技術參數/Technique parameter
|
產品型號 Product model |
閥體材料 Valve body materials |
PMA（Mpa） |
最高允許溫度（℃） Maximum allowable temperature |
適用介質 Used medium |
|
WV1、WV2 WV3、WV4、 WV5 |
碳鋼/不銹鋼 Carbon steel/ Stainless steel |
1.6 4.0 |
420 420 |
蒸汽、凝結水 Steam、Condensate water |
主要零件材料/The materials of primary accessories
|
零部件名稱 Part and component name |
材質 Material |
|
罐體 Jar |
碳鋼/不銹鋼 Carbon steel/Stainless steel |
|
支架 Bracket |
碳鋼/不銹鋼 Carbon steel/Stainless steel |
|
回旋槍 Cyclotron gun |
碳鋼/不銹鋼 Carbon steel/Stainless steel |

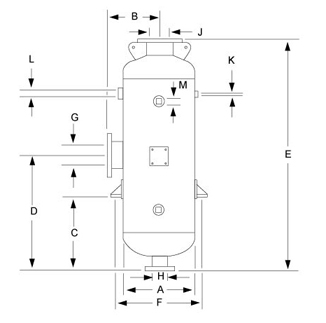

外形尺寸和重量/Prime out-form dimensions and weigh
|
|
WV1 |
WV2 |
WV3 |
WV4 |
WV5 |
|
A |
168 |
229 |
305 |
381 |
457 |
|
B |
154 |
210 |
250 |
290 |
330 |
|
C |
350 |
350 |
380 |
485 |
505 |
|
D |
600 |
600 |
630 |
735 |
755 |
|
E |
1200 |
1275 |
1340 |
1470 |
1510 |
|
F |
230 |
291 |
392 |
468 |
544 |
|
G |
2″ |
DN80 |
DN100 |
DN150 |
DN150 |
|
H |
2″ |
2″ |
2″ |
2″ |
2″ |
|
J |
2″ |
DN80 |
DN100 |
DN150 |
DN150 |
|
K |
3/8″ |
3/8″ |
3/8″ |
3/8″ |
3/8″ |
|
L |
3/4″ |
1″ |
11/2″ |
11/2″ |
2″ |
|
M |
2″ |
2″ |
2″ |
2″ |
2″ |
|
重量 |
77 |
120 |
191 |
282 |
376 |
1、選型時請?zhí)峁┠Y(jié)水壓力、凝結水量、二次蒸汽壓力、罐體材質。
2、排污出口應接疏水閥。
Note
1.To offer condensate water pressure,condensate quantity,secondary steam pressure,pot material and quality for choosing types.
2.To install a drain valve at the sewage draining exit.
